Parallel Betweenness

Example of parallel implementation of betweenness centrality using the multiprocessing module from Python Standard Library.

The function betweenness centrality accepts a bunch of nodes and computes the contribution of those nodes to the betweenness centrality of the whole network. Here we divide the network in chunks of nodes and we compute their contribution to the betweenness centrality of the whole network.

Note: The example output below shows that the non-parallel implementation is faster. This is a limitation of our CI/CD pipeline running on a single core.

Depending on your setup, you will likely observe a speedup.

Out:

Computing betweenness centrality for:
Graph with 1000 nodes and 2991 edges
        Parallel version
                Time: 2.7130 seconds
                Betweenness centrality for node 0: 0.13737
        Non-Parallel version
                Time: 4.5696 seconds
                Betweenness centrality for node 0: 0.13737

Computing betweenness centrality for:
Graph with 1000 nodes and 4916 edges
        Parallel version
                Time: 3.3842 seconds
                Betweenness centrality for node 0: 0.00219
        Non-Parallel version
                Time: 5.8736 seconds
                Betweenness centrality for node 0: 0.00219

Computing betweenness centrality for:
Graph with 1000 nodes and 2000 edges
        Parallel version
                Time: 2.3708 seconds
                Betweenness centrality for node 0: 0.00139
        Non-Parallel version
                Time: 4.0340 seconds
                Betweenness centrality for node 0: 0.00139

from multiprocessing import Pool
import time
import itertools

import matplotlib.pyplot as plt
import networkx as nx


def chunks(l, n):
    """Divide a list of nodes `l` in `n` chunks"""
    l_c = iter(l)
    while 1:
        x = tuple(itertools.islice(l_c, n))
        if not x:
            return
        yield x


def betweenness_centrality_parallel(G, processes=None):
    """Parallel betweenness centrality  function"""
    p = Pool(processes=processes)
    node_divisor = len(p._pool) * 4
    node_chunks = list(chunks(G.nodes(), int(G.order() / node_divisor)))
    num_chunks = len(node_chunks)
    bt_sc = p.starmap(
        nx.betweenness_centrality_subset,
        zip(
            [G] * num_chunks,
            node_chunks,
            [list(G)] * num_chunks,
            [True] * num_chunks,
            [None] * num_chunks,
        ),
    )

    # Reduce the partial solutions
    bt_c = bt_sc[0]
    for bt in bt_sc[1:]:
        for n in bt:
            bt_c[n] += bt[n]
    return bt_c


G_ba = nx.barabasi_albert_graph(1000, 3)
G_er = nx.gnp_random_graph(1000, 0.01)
G_ws = nx.connected_watts_strogatz_graph(1000, 4, 0.1)
for G in [G_ba, G_er, G_ws]:
    print("")
    print("Computing betweenness centrality for:")
    print(nx.info(G))
    print("\tParallel version")
    start = time.time()
    bt = betweenness_centrality_parallel(G)
    print(f"\t\tTime: {(time.time() - start):.4F} seconds")
    print(f"\t\tBetweenness centrality for node 0: {bt[0]:.5f}")
    print("\tNon-Parallel version")
    start = time.time()
    bt = nx.betweenness_centrality(G)
    print(f"\t\tTime: {(time.time() - start):.4F} seconds")
    print(f"\t\tBetweenness centrality for node 0: {bt[0]:.5f}")
print("")

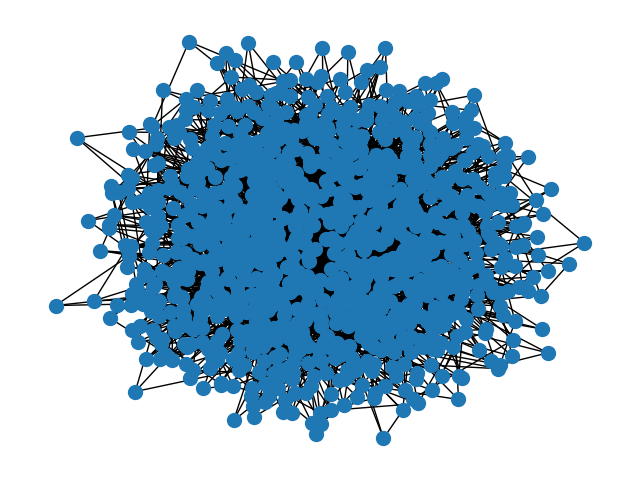

nx.draw(G_ba, node_size=100)
plt.show()
