Node Assortativity Coefficients and Correlation Measures#

In this tutorial, we will explore the theory of assortativity [1] and its measures.

We’ll focus on assortativity measures available in NetworkX at algorithms/assortativity/correlation.py:

  • Attribute assortativity

  • Numeric assortativity

  • Degree assortativity

as well as mixing matrices, which are closely related to assortativity measures.

Import packages#

import networkx as nx
import matplotlib.pyplot as plt
import pickle
import copy
import random
import warnings

%matplotlib inline

Assortativity#

Assortativity in a network refers to the tendency of nodes to connect with other ‘similar’ nodes over ‘dissimilar’ nodes.

Here we say that two nodes are ‘similar’ with respect to a property if they have the same value of that property. Properties can be any structural properties like the degree of a node to other properties like weight, or capacity.

Based on these properties we can have a different measure of assortativity for the network. On the other hand, we can also have disassortativity, in which case nodes tend to connect to dissimilar nodes over similar nodes.

Assortativity coefficients#

Let’s say we have a network \(N\), \(N = (V, E)\) where \(V\) is the set of nodes in the network and \(E\) is the set of edges/directed edges in the network. In addition, \(P(v)\) represents a property for each node \(v\).

Mixing matrix#

Let the property \(P(v)\) take \(P[0],P[1],...P[k-1]\) distinct values on the network, then the mixing matrix is matrix \(M\) such that \(M[i][j]\) represents the number of edges from nodes with property \(P[i]\) to \(P[j]\). We can normalize mixing matrix by diving by total number of ordered edges i.e. \( e = \frac{M}{|E|}\).

Now define,

\(a[i]=\) proportion of edges \((u,v)\) such that \(P(u)=P[i]\)

\[ a[i] = \sum\limits_{j}e[i][j] \]

\(b[i]=\) proportion of edges \((u,v)\) such that \(P(v)=P[i]\)

\[ b[i] = \sum\limits_{j}e[j][i]\]

in Python code it would look something like a = e.sum(axis=0) and b = e.sum(axis=1)

Finally, let \(\sigma_a\) and \(\sigma_b\) represent the standard deviation of \(\{\ P[i]\cdot a[i]\ |\ i \in 0...k-1\}\) and \(\{ P[i]\cdot b[i]\ |\ i \in 0...k-1\}\) respectively.

Then we can define the assortativity coefficient for this property based on the Pearson correlation coefficient.

Attribute Assortativity Coefficient#

Here the property \(P(v)\) is a nominal property assigned to each node. As defined above we calculate the normalized mixing matrix \(e\) and from that we define the attribute assortativity coefficient [2] as below.

From here onwards we will use subscript notation to denote indexing, for eg. \(P_i = P[i]\) and \(e_{ij} = e[i][j]\)

\[ r = \frac{\sum\limits_{i}e_{ii} - \sum\limits_{i}a_{i}b_{i}}{1-\sum\limits_{i}a_{i}b_{i}} = \frac{Trace(e) - ||e^2||}{1-||e^2||}\]

It is implemented as attribute_assortativity_coefficient.

Numeric Assortativity Coefficient#

Here the property \(P(v)\) is a numerical property assigned to each node and the definition of the normalized mixing matrix \(e\), \(\sigma_a\), and \(\sigma_b\) are same as above. From these we define numeric assortativity coefficient [2] as below.

\[ r = \frac{\sum\limits_{i,j}P_i P_j(e_{ij} -a_i b_j)}{\sigma_a\sigma_b} \]

It is implemented as numeric_assortativity_coefficient.

Degree Assortativity Coefficient#

When it comes to measuring degree assortativity for directed networks we have more options compared to assortativity w.r.t a property because we have 2 types of degrees, namely in-degree and out-degree. Based on the 2 types of degrees we can measure \(2 \times 2 =4\) different types of degree assortativity [3]:

  1. r(in,in) : Measures tendency of having a directed edge (u,v) such that, in-degree(u) = in-degree(v).

  2. r(in,out) : Measures tendency of having a directed edge (u,v) such that, in-degree(u) = out-degree(v).

  3. r(out,in) : Measures tendency of having a directed edge (u,v) such that, out-degree(u) = in-degree(v).

  4. r(out,out) : Measures tendency of having a directed edge (u,v) such that, out-degree(u) = out-degree(v).

Note: If the network is undirected all the 4 types of degree assortativity are the same.

To define the degree assortativity coefficient for all 4 types we need slight modification in the definition of \(P[i]\) and \(e\), and the definations of \(\sigma_a\) and \(\sigma_b\) remain the same.

Let \(x,y \in \{in,out\}\). The property \(P(\cdot)\) takes distinct values from the union of the values taken by \(x\)-degree\((\cdot)\) and \(y\)-degree\((\cdot)\), and \(e_{i,j}\) is the proportion of directed edges \((u,v)\) with \(x\)-degree\((u) = P_i\) and \(y\)-degree\((v) = P_j\).

\[ r(x,y) = \frac{\sum\limits_{i,j}P_i P_j(e_{ij} -a_i b_j)}{\sigma_a\sigma_b} \]

It is implemented as degree_assortativity_coefficient and degree_pearson_correlation_coefficient. The latter function uses scipy.stats.pearsonr to calculate the assortativity coefficient which makes it potentally faster.

Assortativity Example#

Illustrating how value of assortativity changes

gname = "g2"
G = nx.read_graphml(f"data/{gname}.graphml")
with open(f"data/pos_{gname}", "rb") as fp:
    pos = pickle.load(fp)
fig, axes = plt.subplots(4, 2, figsize=(20, 20))

# assign colors and labels to nodes based on their 'cluster' and 'num_prop' property
node_colors = ["orange" if G.nodes[u]["cluster"] == "K5" else "cyan" for u in G.nodes]
node_labels = {u: G.nodes[u]["num_prop"] for u in G.nodes}

for i in range(8):
    g = nx.read_graphml(f"data/{gname}_{i}.graphml")

    # calculating the assortativity coefficients wrt different proeprties
    cr = nx.attribute_assortativity_coefficient(g, "cluster")
    r_in_out = nx.degree_assortativity_coefficient(g, x="in", y="out")
    nr = nx.numeric_assortativity_coefficient(g, "num_prop")

    # drawing the network
    nx.draw_networkx_nodes(
        g, pos=pos, node_size=300, ax=axes[i // 2][i % 2], node_color=node_colors
    )
    nx.draw_networkx_labels(g, pos=pos, labels=node_labels, ax=axes[i // 2][i % 2])
    nx.draw_networkx_edges(g, pos=pos, ax=axes[i // 2][i % 2], edge_color="0.7")
    axes[i // 2][i % 2].set_title(
        f"Attribute assortativity coefficient = {cr:.3}\nNumeric assortativity coefficient = {nr:.3}\nr(in,out) = {r_in_out:.3}",
        size=15,
    )

fig.tight_layout()
/home/circleci/repo/venv/lib/python3.12/site-packages/networkx/algorithms/assortativity/correlation.py:302: RuntimeWarning: invalid value encountered in scalar divide
  return float((xy * (M - ab)).sum() / np.sqrt(vara * varb))
../../../_images/5d2311a45c118b0f0de2808dd607c64cfe182568512ec8d7c26edcbb7e3b61e6.png

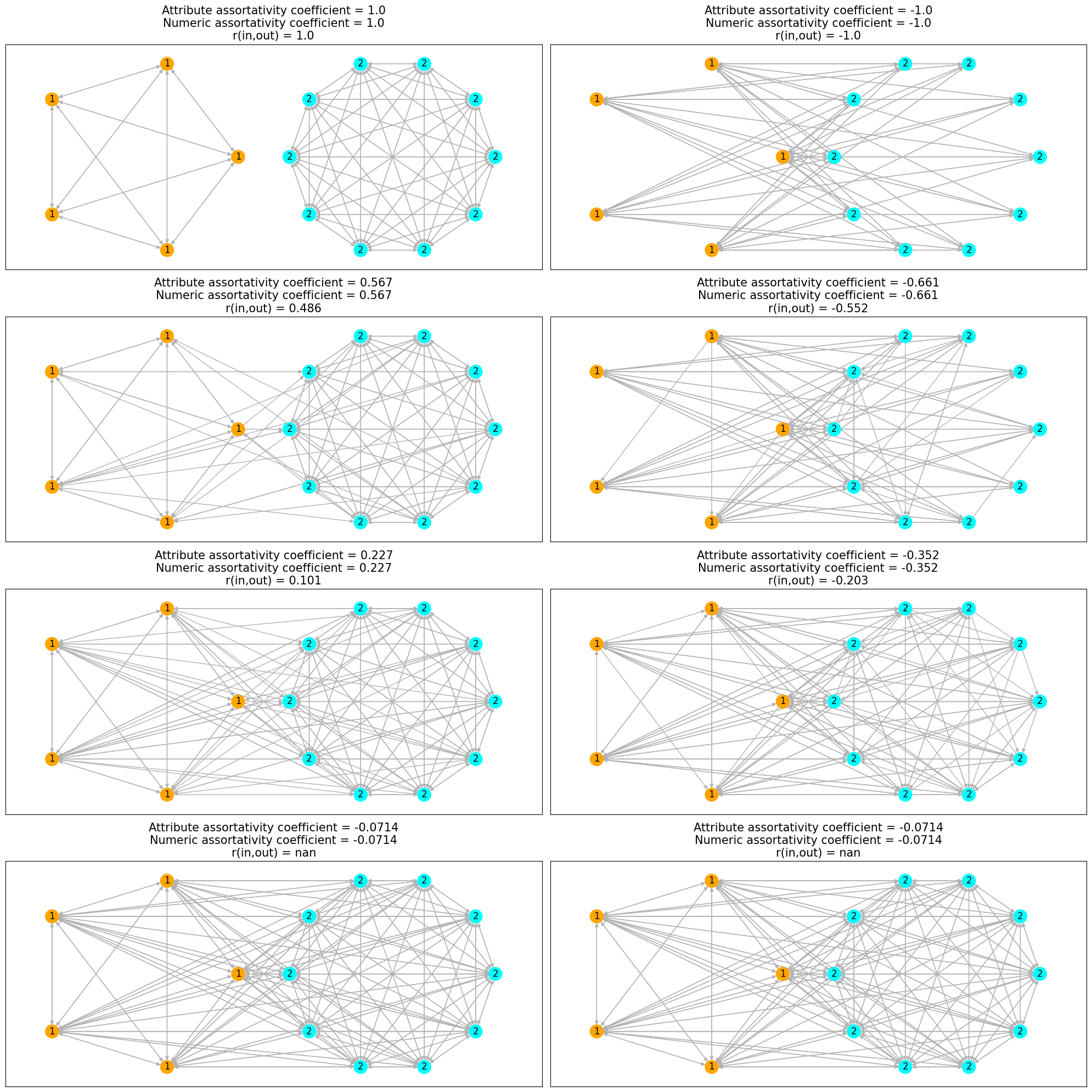

Nodes are colored by the cluster property and labeled by num_prop property. We can observe that the initial network on the left side is completely assortative and its complement on right side is completely disassortative. As we add edges between nodes of different (similar) attributes in the assortative (disassortative) network, the network tends to a non-assortative network and value of both the assortativity coefficients tends to \(0\).

The parameter nodes in attribute_assortativity_coefficient and numeric_assortativity_coefficient specifies the nodes whose edges are to be considered in the mixing matrix calculation. That is to say, if \((u,v)\) is a directed edge then the edge \((u,v)\) will be used in mixing matrix calculation if \(u\) is in nodes. For the undirected case, it’s considered if atleast one of the \(u,v\) in in nodes.

The nodes parameter is interpreted differently in degree_assortativity_coefficient and degree_pearson_correlation_coefficient, where it specifies the nodes forming a subgraph whose edges are considered in the mixing matrix calculation.

# list of nodes to consider for the i'th network in the example
# Note: passing 'None' means to consider all the nodes
nodes_list = [
    None,
    [str(i) for i in range(3)],
    [str(i) for i in range(4)],
    [str(i) for i in range(5)],
    [str(i) for i in range(4, 8)],
    [str(i) for i in range(5, 10)],
]
fig, axes = plt.subplots(3, 2, figsize=(20, 16))


def color_node(u, nodes):
    """Utility function to give the color of a node based on its attribute"""
    if u not in nodes:
        return "0.85"
    if G.nodes[u]["cluster"] == "K5":
        return "orange"
    else:
        return "cyan"


# adding a edge to show edge cases
G.add_edge("4", "5")

for nodes, ax in zip(nodes_list, axes.ravel()):
    # calculating the value of assortativity
    cr = nx.attribute_assortativity_coefficient(G, "cluster", nodes=nodes)
    nr = nx.numeric_assortativity_coefficient(G, "num_prop", nodes=nodes)

    # drawing network
    ax.set_title(
        f"Attribute assortativity coefficient: {cr:.3}\nNumeric assortativity coefficient: {nr:.3}\nNodes = {nodes}",
        size=15,
    )
    if nodes is None:
        nodes = [u for u in G.nodes()]
    node_colors = [color_node(u, nodes) for u in G.nodes]
    nx.draw_networkx_nodes(G, pos=pos, node_size=450, ax=ax, node_color=node_colors)
    nx.draw_networkx_labels(G, pos, labels={u: u for u in G.nodes}, font_size=15, ax=ax)
    nx.draw_networkx_edges(
        G,
        pos=pos,
        edgelist=[(u, v) for u, v in G.edges if u in nodes],
        ax=ax,
        edge_color="0.3",
    )
fig.tight_layout()
/home/circleci/repo/venv/lib/python3.12/site-packages/networkx/algorithms/assortativity/correlation.py:282: RuntimeWarning: invalid value encountered in scalar divide
  r = (t - s) / (1 - s)
../../../_images/6f80653924ab00865dcb270ac79deb521d8b568a99ee22610321a7d957d61a1e.png

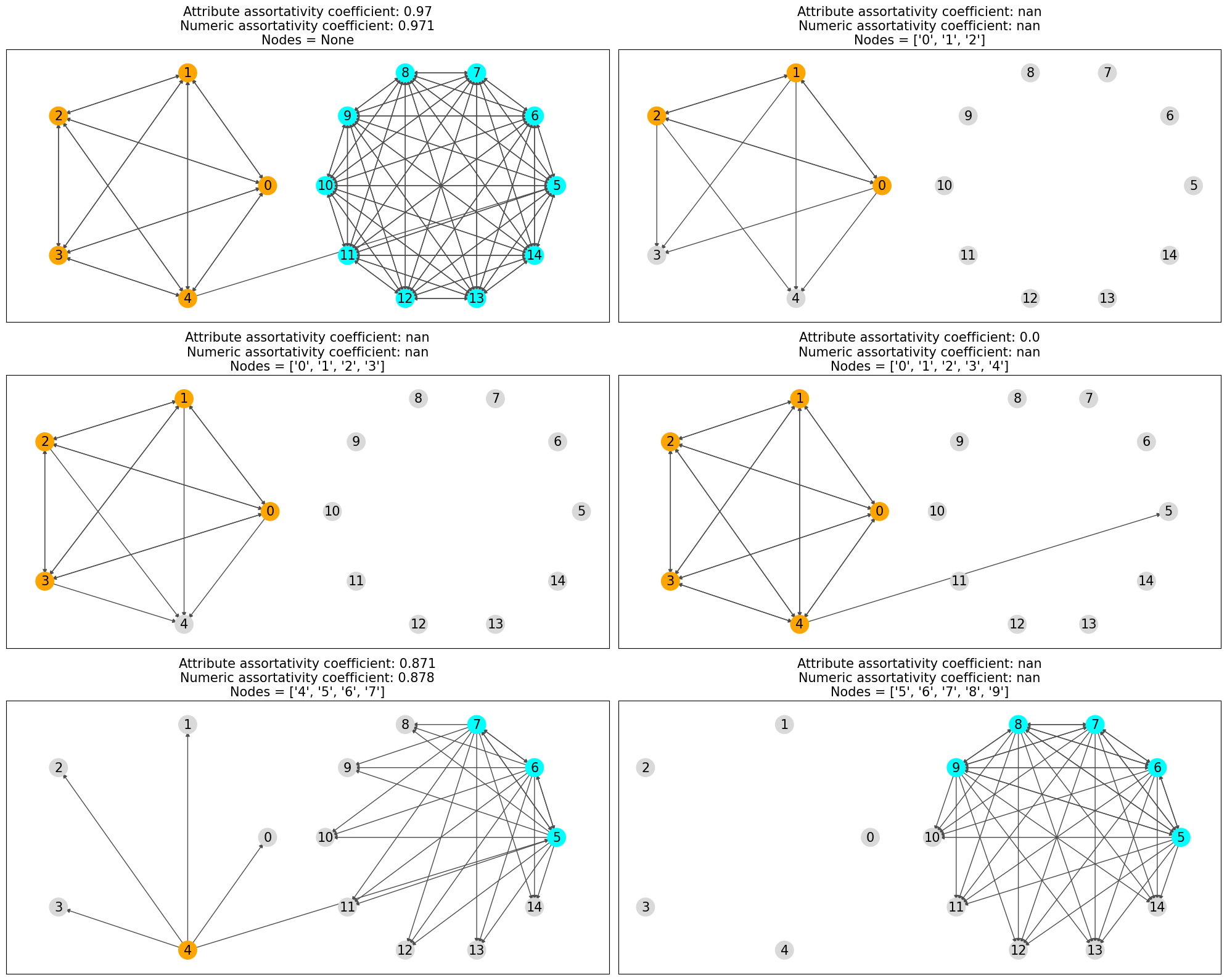

In the above plots only the nodes which are considered are colored and rest are grayed out and only the edges which are considerd in the assortativity calculation are drawn.
